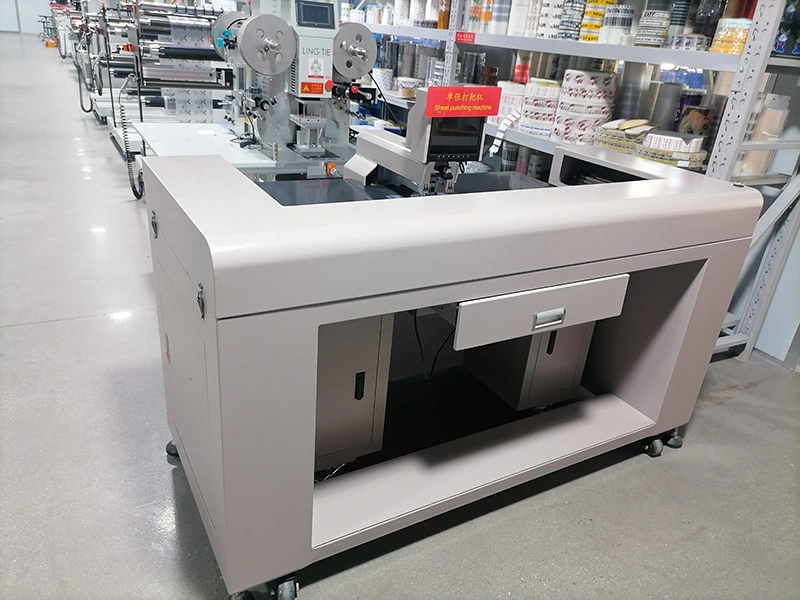

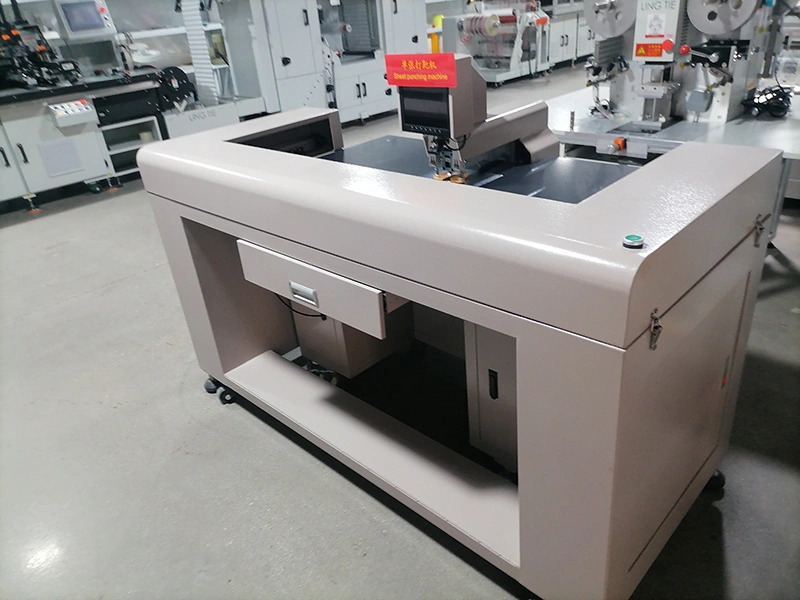

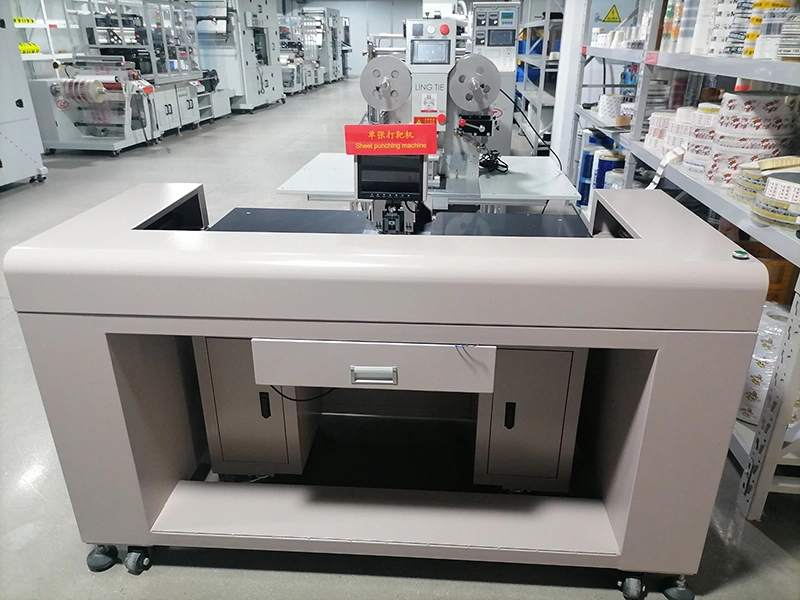

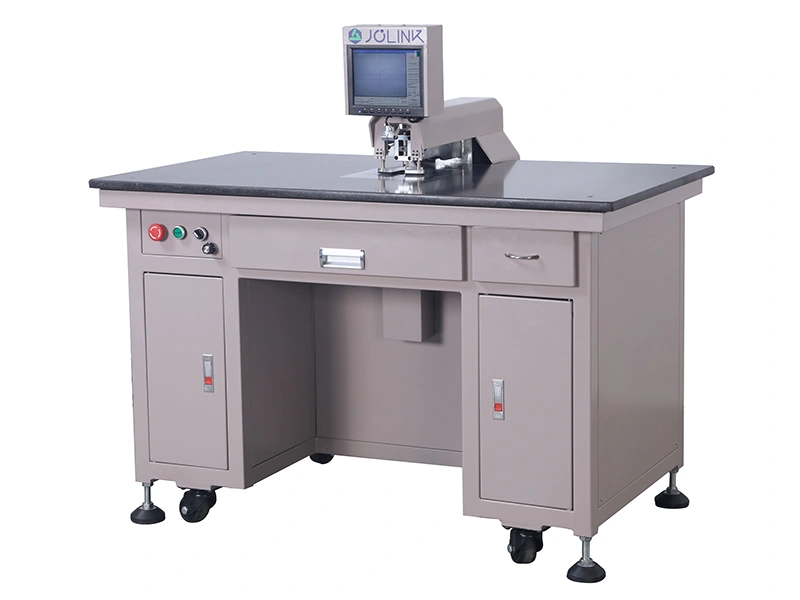

CCD Guide Hole Punching Machine

CCD guide hole punching machine automates the positioning and punching of registration holes on individual sheets. The CCD vision system reads target marks on each piece, locates the punching position, and completes the hole accurately without manual alignment. It is well suited to production where sheet sizes, materials, or specifications change frequently, including small-batch work.

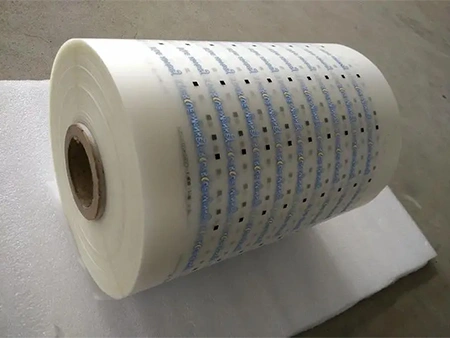

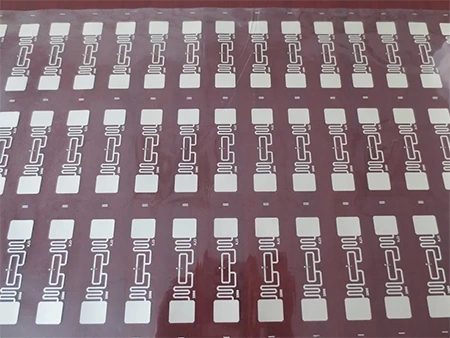

  • Samples
  • Samples
Request a Quote
Technical Specifications
Model ZLG-6080A
Punching Thickness mm 0.01-3
Hole Diameter mm 1-6
Display Size inch 8
Compressed Air Pressure MPa 0.4-0.7
Positioning Accuracy mm 0.015
Punching Cycle s 0.5
Power kW 0.4-0.5
Voltage V 200-240
Max. Sheet Size mm 400×600(customizable upon request)
Machine Dimensions (L×W×H) mm L1150×W780×H1120
Net Weight kg 200
Advantages
  • CCD positioning and automatic punching
    Image recognition identifies the target marks on the material and positions each sheet for accurate punching. Manual alignment is no longer required, which improves both efficiency and positioning consistency.
  • Flexible sheet processing
    It handles individual sheets in different sizes and thicknesses, including film positives, PCB sheets, PET and PVC panels, membrane switches, nameplates, and signage materials. This flexibility makes it practical for mixed production with frequent product changes.

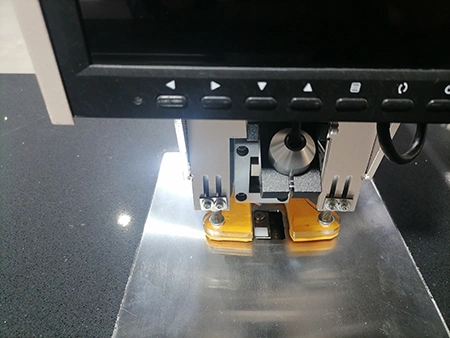

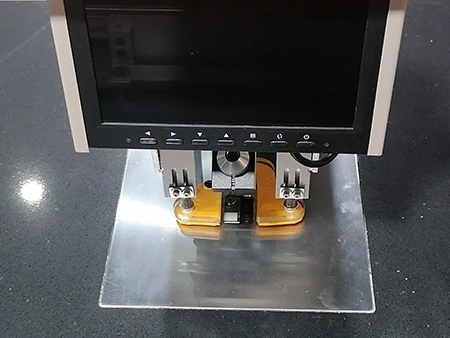

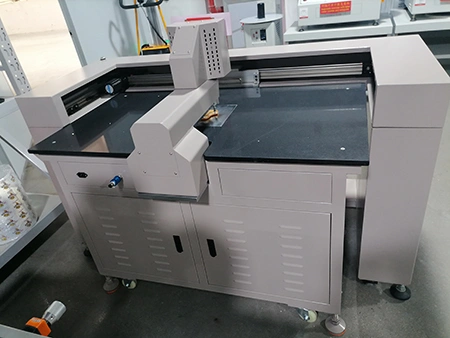

Components
  • Components
  • Components
  • Components
