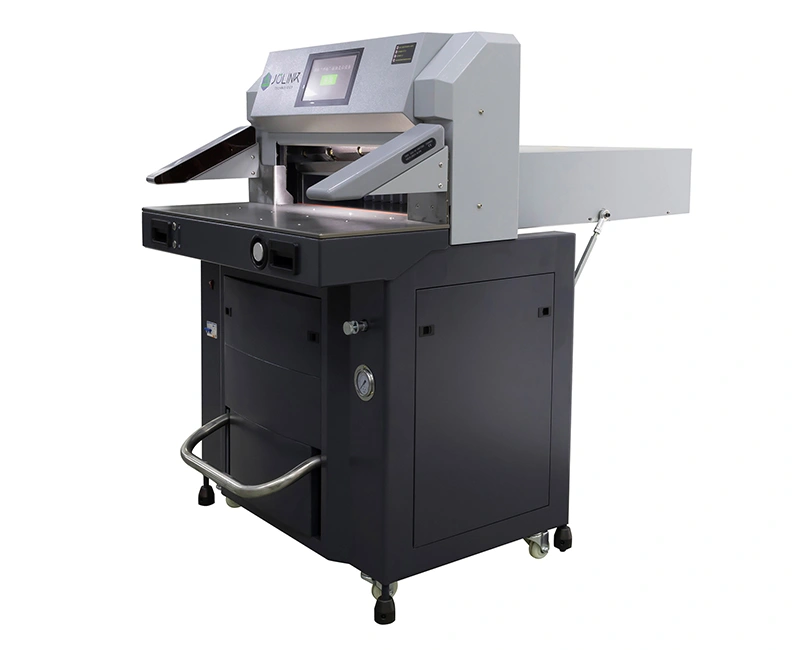

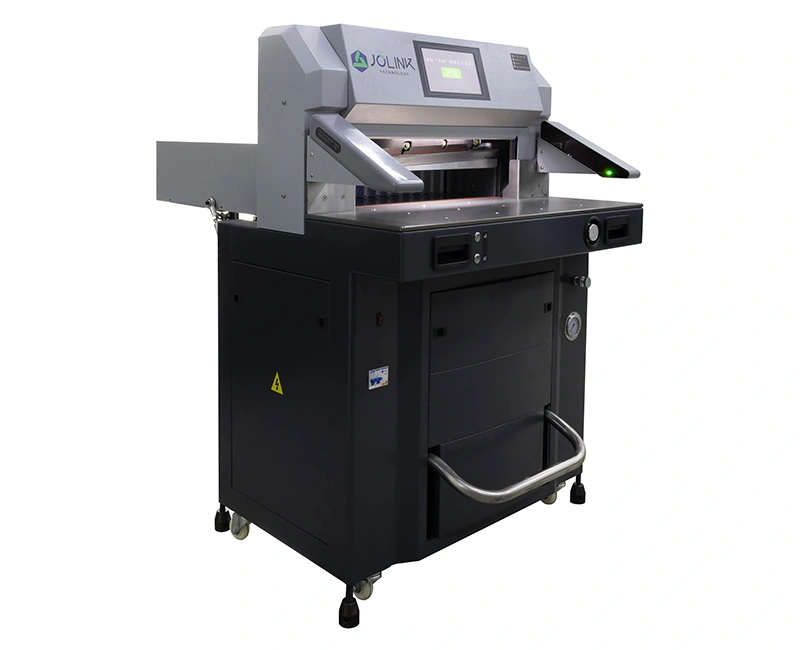

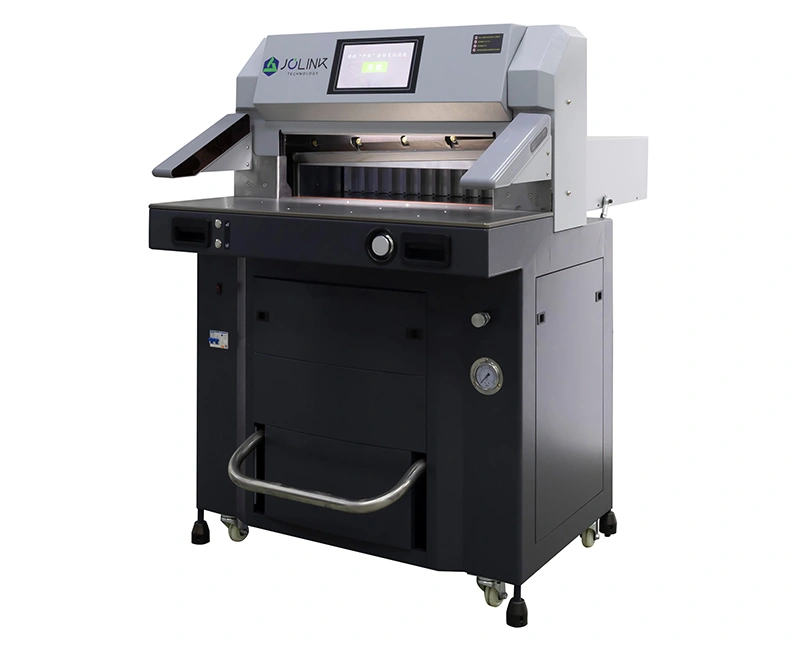

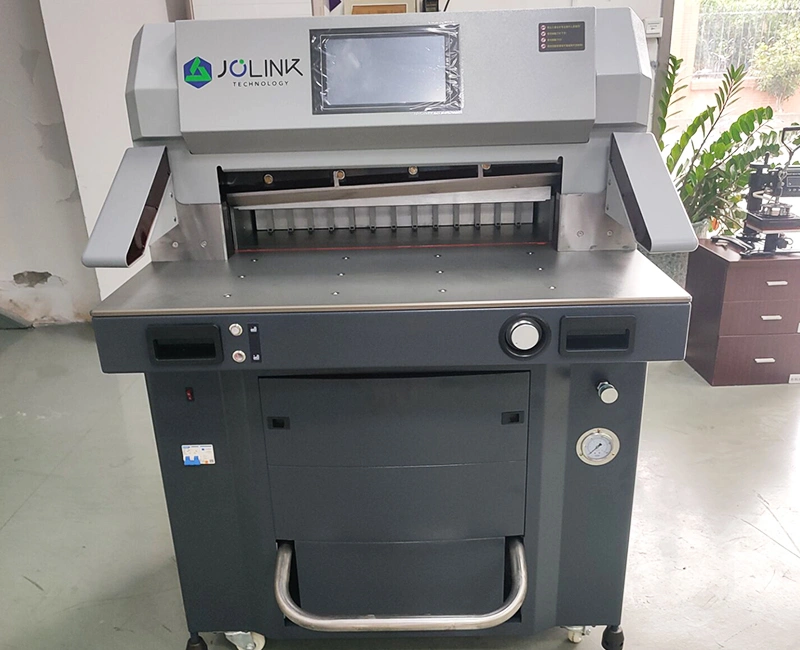

Automatic Guillotine Cutter

Automatic Guillotine Cutter

Automatic guillotine cutter provides high-precision, efficient cutting for individual paper sheets. Its programmable control system accurately manages back gauge positioning, paper feeding dimensions as well as the timing of clamping and cutting. Operators can switch between cutting sizes easily, with consistent cutting accuracy across different paper types and formats. This gives manufacturers a reliable solution for standardized paper cutting across different jobs.

Technical Specifications
Model ZLK-680
Max. Cutting Size mm 680×680
Min. Cutting Size mm 30
Max. Cutting Thickness mm 100
Paper Clamping and Cutting System Hydraulic
Display LCD
Safety Protection Infrared photoelectric protection
Power Supply kW 3kW / 220V / 50Hz
Machine Dimensions (L×W×H) mm 1170×810×1390
Net Weight kg 450
Advantages
  • Clamping pressure and operating speed can be adjusted as required, with smooth and accurate paper feeding for precise positioning.
  • Blade depth can be set directly from the control panel, with intelligent programmed control and an LCD display for convenient operation.
  • Infrared safety light curtains and front and rear guarding provide protection around the cutting area and meet CE safety requirements.
