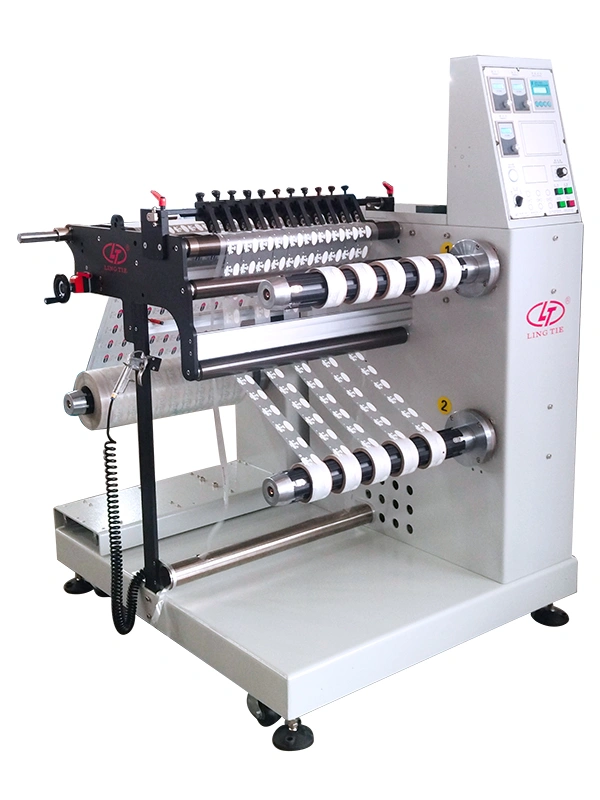

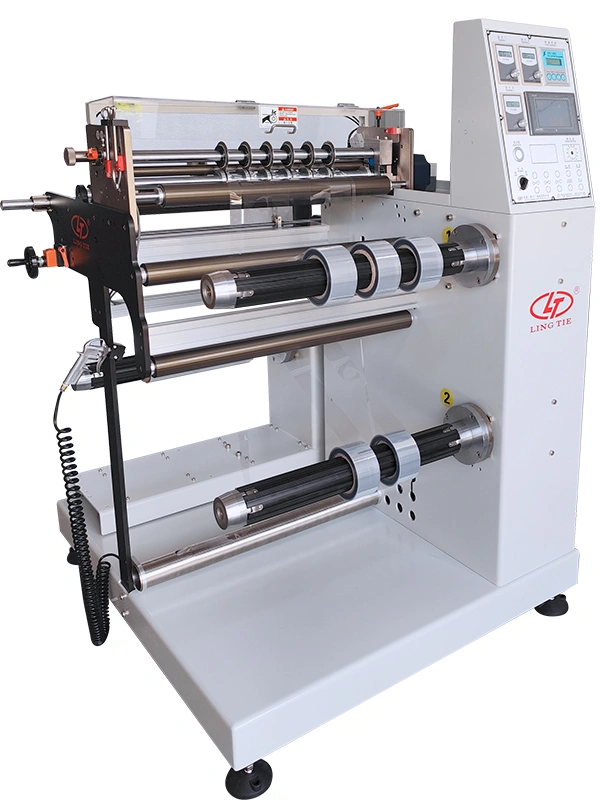

Slitter Rewinder

Slitter Rewinder

Slitter rewinders are used to turn wide rolls into narrower rolls for later printing, converting, or finishing. The material is cut lengthwise to the required widths and then rewound into separate rolls. Web guiding keeps it in the correct position, while tension control helps it move smoothly through the slitting section. We offer two slitter rewinder configurations for different materials: one with circular rotary knives for thicker or more rigid webs such as PET/PC film, paper, foil, nonwovens, FPC, and laminated labels, and another with flat slitter blades (razor blades) for thin, soft films such as PE, PP, BOPP, and flexible PVC.

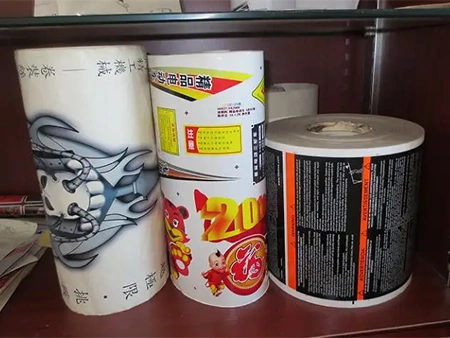

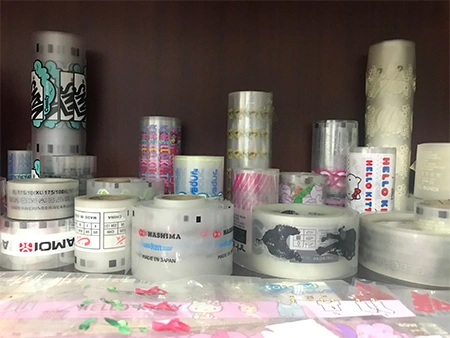

  • Samples
  • Samples
Technical Specifications

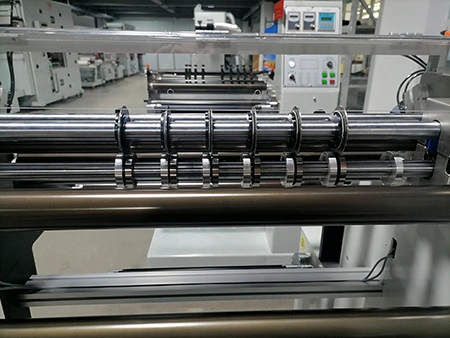

Slitter Rewinder (Rotary-Knife)
  • Model: LTD-400B / LTD-600B / LTD-700B / LTD-900B (5th Gen.) / LTD-1000B (5th Gen.)
  • Max. Web Width (mm): 400/600/700/900/1000
  • Max. Load (kg): 70 (customizable)/70 (customizable)/70 (customizable)/200 (customizable)/200 (customizable)
  • Max. Roll Diameter (mm): 650/650/650/910/910

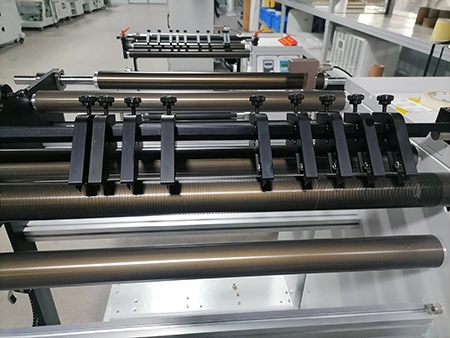

Slitter Rewinder (Razor-Blade)
  • Model: LTD-400B / LTD-600B / LTD-700B / LTD-900B (5th Gen.) / LTD-1000B (5th Gen.)
  • Max. Web Width (mm): 400/600/700/900/1000
  • Max. Load (kg): 70 (customizable)/70 (customizable)/70 (customizable)/200 (customizable)/200 (customizable)
  • Max. Roll Diameter (mm): 650/650/650/910/910
Components

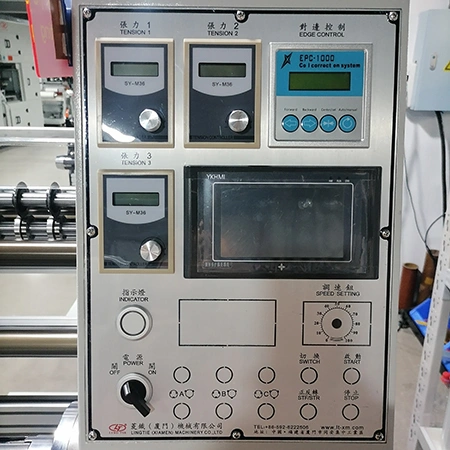

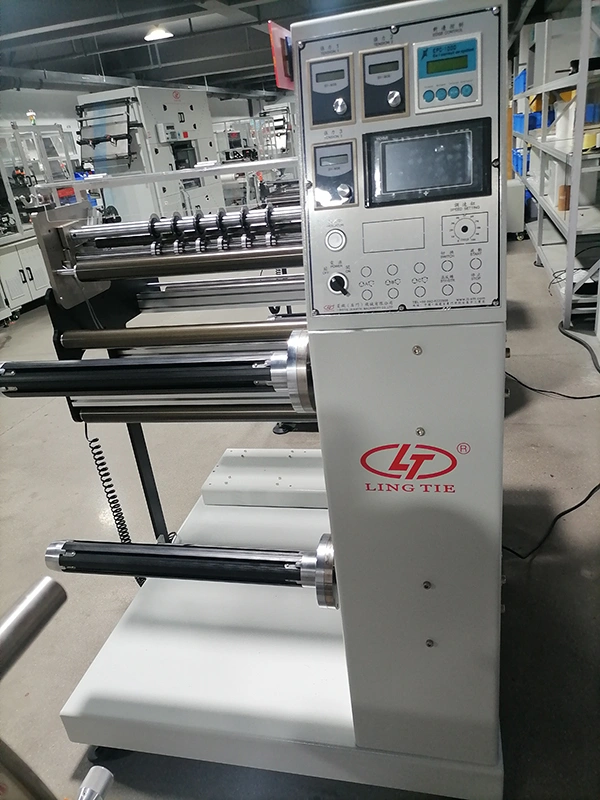

  • Tension and web guiding control unit
    Tension and web guiding control unit

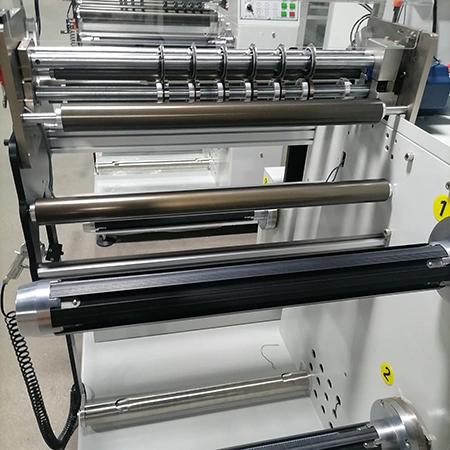

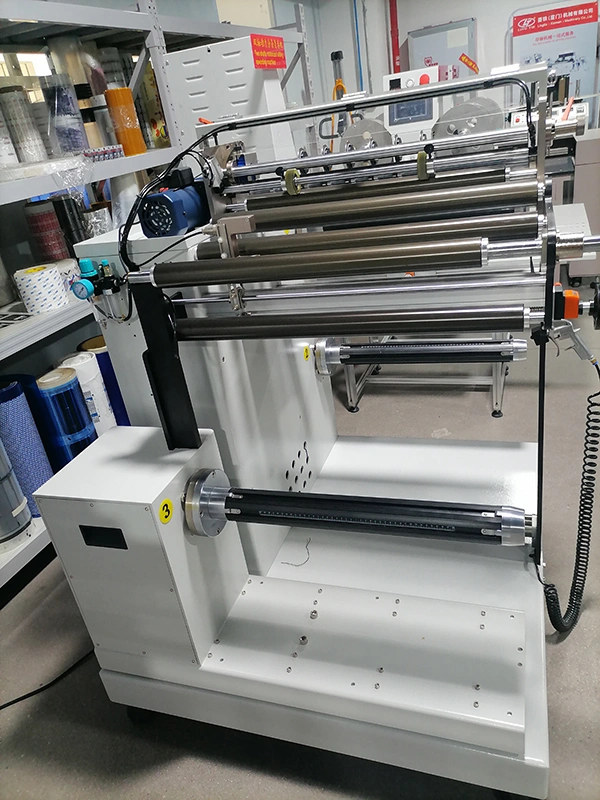

  • Dual-shaft rewinding unit
    Dual-shaft rewinding unit

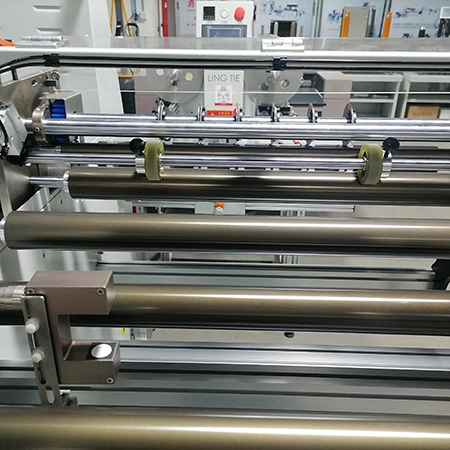

  • Web-guide sensor
    Web-guide sensor
Optional functions
  • Web cleaning
    Web cleaning
  • Corona treater for conductive materials
    Corona treater for conductive materials
  • Semi-automatic electromagnetic tension control
    Semi-automatic electromagnetic tension control
  • Laminating function
    Laminating function
  • Metering function
    Metering function
  • Counting function
    Counting function
  • Heating function
    Heating function
  • Splicing table
    Splicing table
  • Anti-static brushes
    Anti-static brushes
  • Inspection table
    Inspection table
  • Pneumatic pressing
    Pneumatic pressing
  • Film peeling
    Film peeling
  • Sloped inspection table
    Sloped inspection table

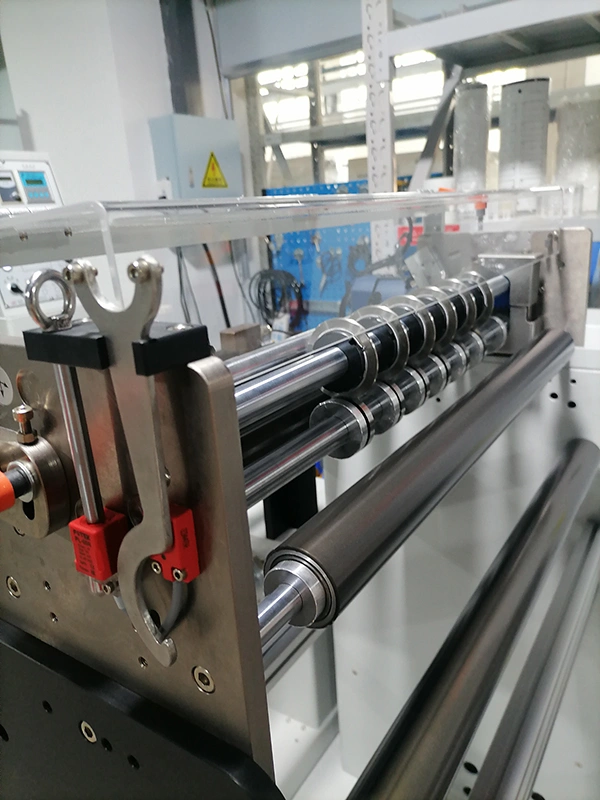

  • Rotary-knife slitting
    Rotary-knife slitting
  • Razor-blade slitting
    Razor-blade slitting
Backed by 20+ years of engineering expertise, LINGTIE is a direct manufacturer specializing in industrial printing equipment and label finishing equipment, delivering roll-to-roll screen printing lines, letterpress printing presses, and automatic heat transfer presses. Serving global clients across packaging, textiles and apparel, labels, nonwoven products, electronics, plastic products, and paper processing, we offer a complete range of auxiliary equipment such as slitter rewinder, inspection rewinder, roll-to-sheet cutter, and UV curing machine to seamlessly convert raw substrates into precision-printed products. Global procurement partners trust LINGTIE because we manage the complete production process in-house, from precision machining to final assembly, delivering turnkey printing solutions with reliable performance, high accuracy, and long-term production stability for customers worldwide.
