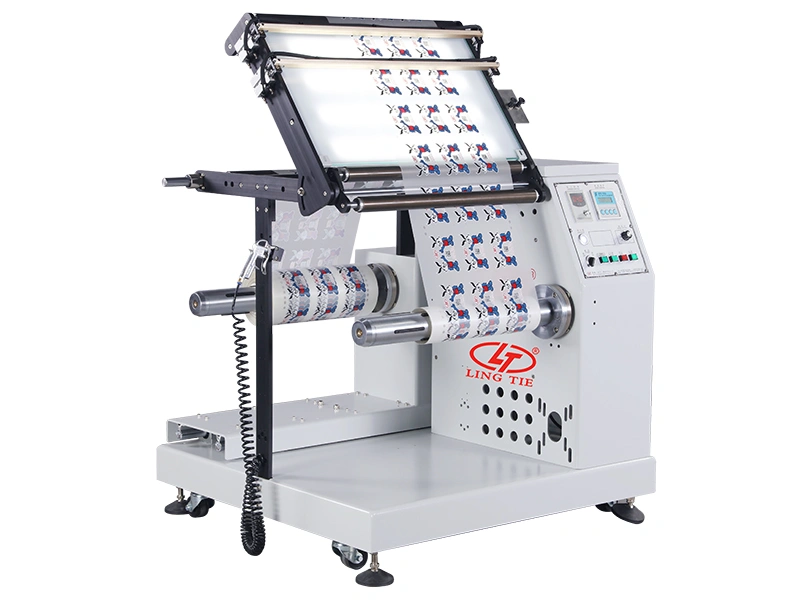

Inspection Rewinder

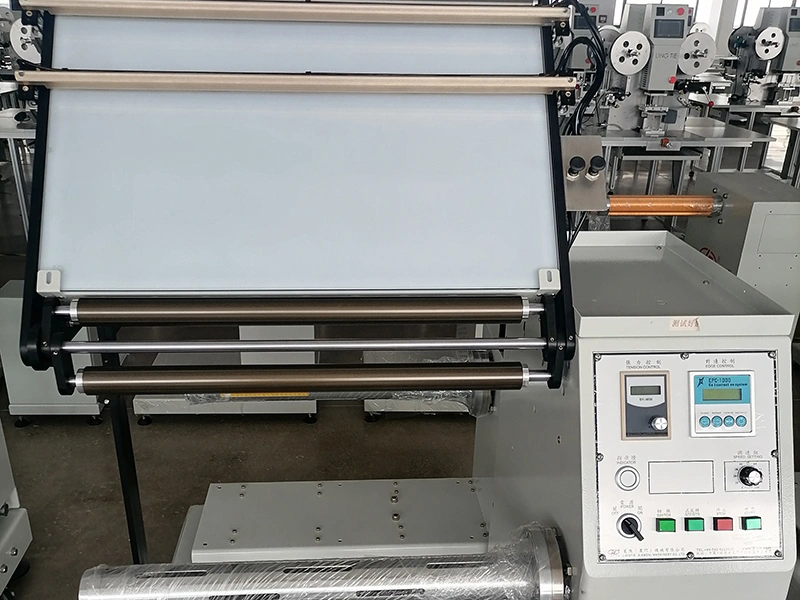

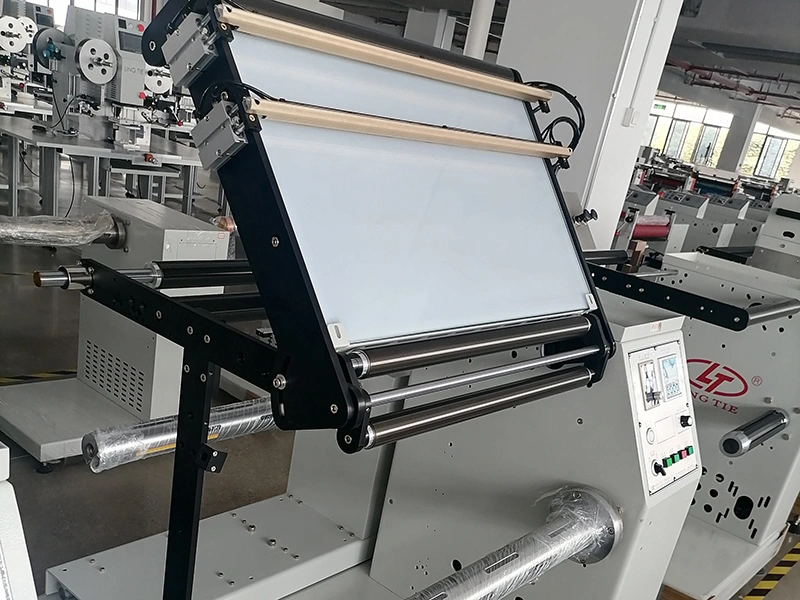

The inspection rewinder combines automatic web guiding and rewinding with an inspection table for checking printed flexible materials while they are running. The table has a glass surface with white backlighting underneath, which makes the printed area easier to examine, while a hold-down device (a bar that keeps the web flat against the inspection table) keeps the web in position during inspection. The inspection table is set at an adjustable angle, so operators can change the viewing position when checking the material for visible print defects.
| Model | | | | | | |
| Max. Web Width | mm | 400 | 600 | 700 | 900 | 1000 |
| Max. Load | kg | 70(customizable) | 70(customizable) | 70(customizable) | 200(customizable) | 200(customizable) |
| Max. Roll Diameter | mm | 650 | 650 | 650 | 910 | 910 |
| Power Supply | V / kW | 220 / 0.75 | 220 / 1.7 | 220 / 1.7 | 220 / 1.7 | 220 / 1.7 |
| Electromagnetic Tension | N | 0–25 | 0–25 | 0–25 | 100 | 100 |
| Web Guide Stroke | mm | 140(±70) | 140(±70) | 140(±70) | 140(±70) | 140(±70) |
| Net Weight | kg | 290 | 330 | 360 | 600 | 630 |
| Machine Dimensions (L×W×H) | mm | 1000×950×1050 (+100adjustable) | 1000×1150×1050 (+100adjustable) | 1000×1250×1050 (+100adjustable) | 1310×1664×1140 (+100adjustable) | 1310×1764×1140 (+100adjustable) |
| Other sizes and models are available upon request. Weight varies depending on the final machine configuration. | ||||||
-

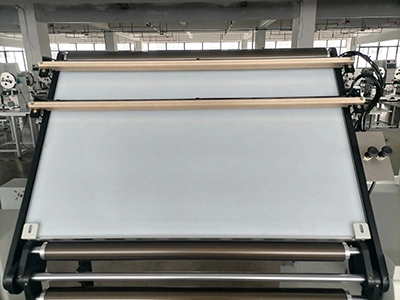

Inspection table

-

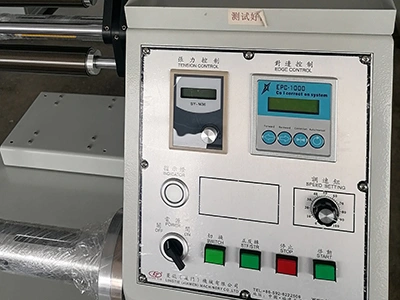

Control panel

-

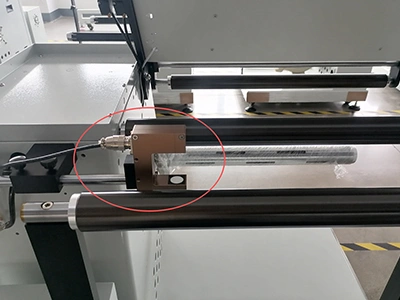

Web guide sensor

-
PLC-controlled constant speed

-
Web cleaning

-
Corona treater for conductive materials

-
Semi-automatic electromagnetic tension control

-
Laminating function

-
Metering function

-
Counting function

-
Heating function

-
Splicing table

-
Anti-static brushes

-
Inspection table

-
Pneumatic pressure

-
Film peeling

-
Sloped inspection table

-
Rotary knife slitting

-
Razor blade slitting
