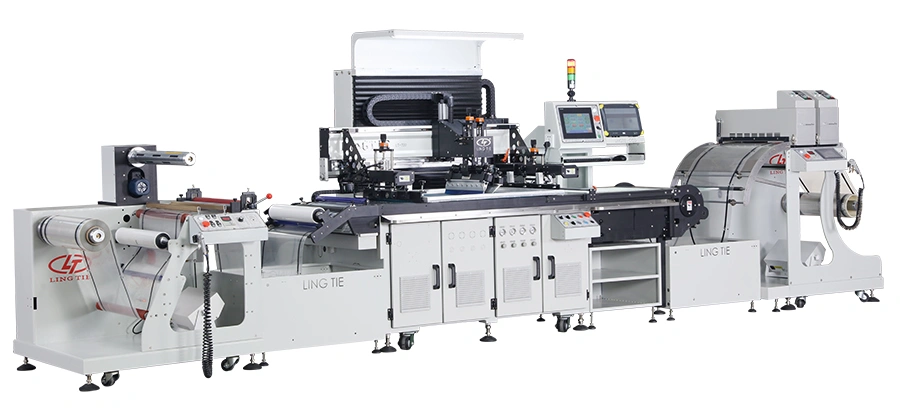

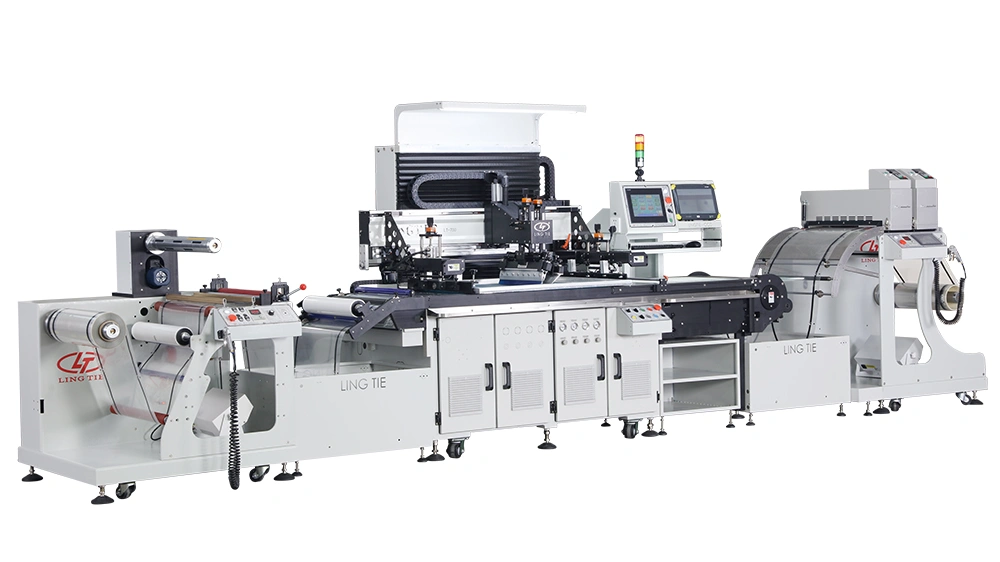

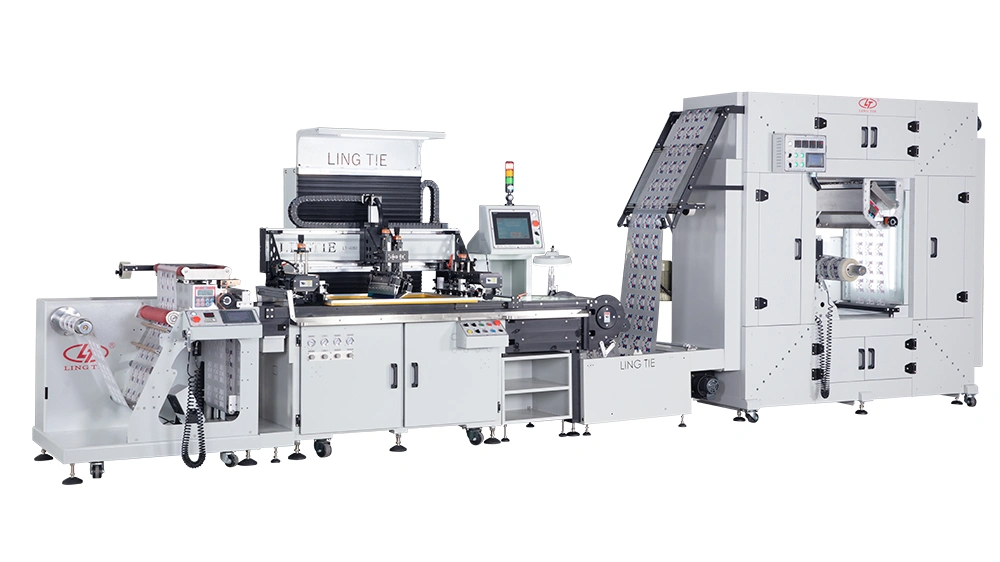

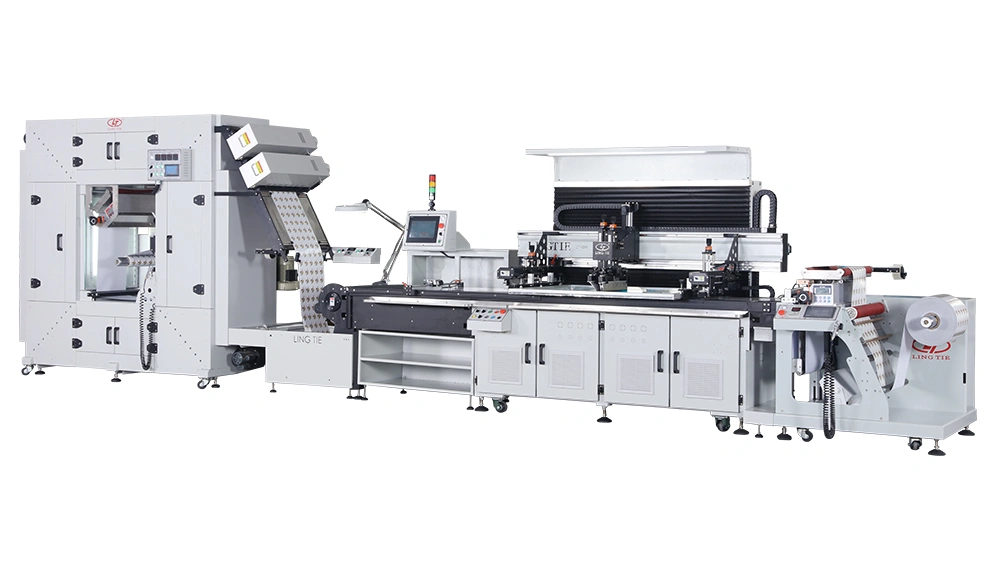

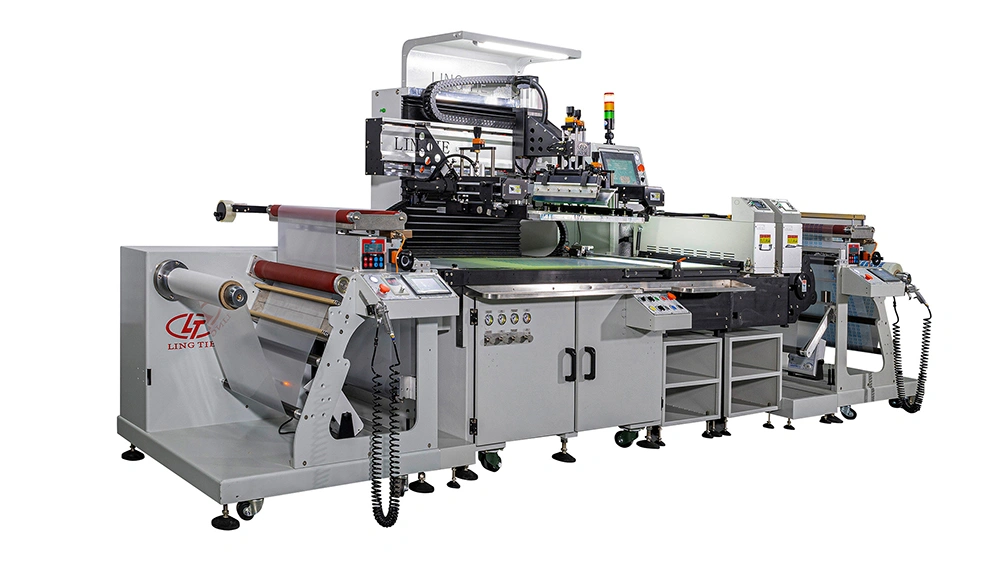

Roll-to-Roll Screen Press

The automatic roll-to-roll screen printing machines integrate unwinding, screen printing, drying or UV curing, and rewinding into a complete automated production system. It supports high-precision single-color and multi-color printing with stable operation throughout long and continuous printing cycles on flexible roll materials. The screen printer can be configured with hot air-drying ovens or UV curing systems according to different ink types and production requirements. With flexible configuration options and precise printing control, it is suitable for applications including heat transfer labels, electronic films, decorative materials, packaging products, and other roll-based substrates.

  • Roll-to-Roll Screen Press
    Watch Videos
Samples
  • Samples
  • Samples
  • Samples
  • Samples
Request a Quote
Compatible Materials

The roll-to-roll screen printing machines are compatible with a wide range of flexible roll materials, including:

  • PET, PE, and OPP films
  • Self-adhesive label materials
  • Flexible Printed Circuits (FPC)
  • Conductive films
  • Nonwoven fabrics
  • Aluminum foil
  • Heat transfer films
  • Other roll-based flexible substrates
Samples

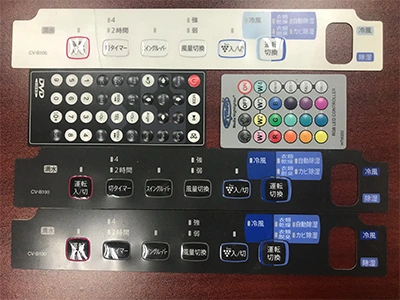

  • Graphic overlays and membrane switches
    Graphic overlays and membrane switches

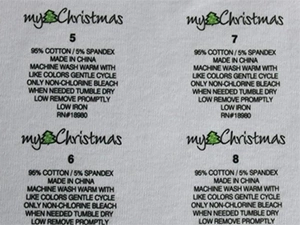

  • Heat transfer labels
    Heat transfer labels

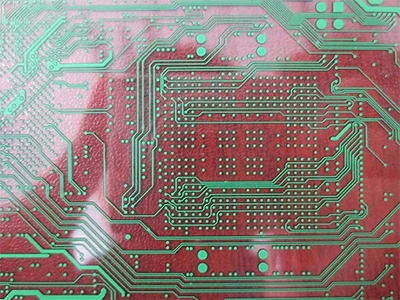

  • Flexible printed circuit (FPC)
    Flexible printed circuit (FPC)

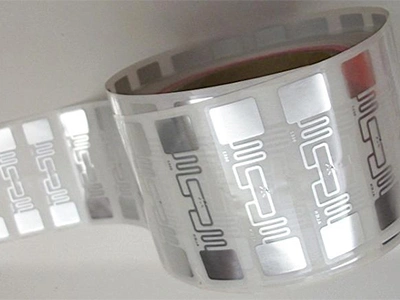

  • RFID (radio-frequency identification) labels
    RFID (radio-frequency identification) labels
Roll-to-Roll Screen Press (330mm Web Width)
Roll-to-Roll Screen Press
  • Model: LTA-3040/3060/3080/30100/30120/30140/30160/30180/30200/30220
  • Printing Area (W×L (mm)):
    Standard: 330×450/650/850/1050/1250/1450/1650/ 1850/2050/2250
    CCD version: 260×450/650/850/1050/1250/1450/1650/ 1850/2050/2250
  • Printing Speed (pcs/h): 0-6000 (depending on machine configuration, print size and application requirements)
  • Max. Screen Frame Size (W×L (mm)): 600×800/1000/1200/1400/1600/1800/2000/2200/2400/2600
  • Max. Web Width (mm): 330
Roll-to-Roll Screen Press (430mm Web Width)
Roll-to-Roll Screen Press
  • Model: LTA-4050/4070/4090/40110/40130/40150/40170/40190/40210/40230
  • Printing Area (W×L (mm)):
    Standard: 430×550 / 750 / 950 / 1150 / 1350 / 1550 / 1750 / 1950 / 2150 / 2350
    CCD version: 360×550 / 750 / 950 / 1150 / 1350 / 1550 / 1750 / 1950 / 2150 / 2350
  • Printing Speed (pcs/h): 0–6,000 (depending on machine configuration, print size and application requirements)
  • Max. Screen Frame Size (W×L (mm)): 700×900 / 1100 / 1300 / 1500 / 1700 / 1900 / 2100 / 2300 / 2500 / 2700
  • Max. Web Width (mm): 430
Roll-to-Roll Screen Press (530mm Web Width)
Roll-to-Roll Screen Press
  • Model: LTA-5070/ 5080/50100/50120/50140/ 50160/ 50180/50200/50220/50240
  • Printing Area (W×L (mm)):
    Standard: 530×750 / 850 / 1050 / 1250 / 1450 / 1650 / 1850 / 2050 / 2250 / 2450
    CCD version: 460×750 / 850 / 1050 / 1250 / 1450 / 1650 / 1850 / 2050 / 2250 / 2450
  • Printing Speed (pcs/h): 0–4,500 (depending on machine configuration, print size and application requirements)
  • Max. Screen Frame Size (W×L (mm)): 800×1100 / 1200 / 1400 / 1600 / 1800 / 2000 / 2200 / 2400 / 2600 / 2800
  • Max. Web Width (mm): 530
Roll-to-Roll Screen Press (630mm Web Width)
Roll-to-Roll Screen Press
  • Model: LTA-6080/60100/60120/60140/60160/60180/60200/60220/60240/60260
  • Printing Area (W×L (mm)):
    Standard: 630×850 / 1050 / 1250 / 1450 / 1650 / 1850 / 2050 / 2250 / 2450 / 2650
    CCD version: 560×850 / 1050 / 1250 / 1450 / 1650 / 1850 / 2050 / 2250 / 2450 / 2650
  • Printing Speed (pcs/h): 0–4,500 (depending on machine configuration, print size and application requirements)
  • Max. Screen Frame Size (W×L (mm)): 900×1200 / 1400 / 1600 / 1800 / 2000 / 2200 / 2400 / 2600 / 2800 / 3000
  • Max. Web Width (mm): 630
Roll-to-Roll Screen Press (730mm Web Width)
Roll-to-Roll Screen Press
  • Model: LTA-7060/7080 /70100/70120/70140/70160/70180 /70200 /70220 /70240
  • Printing Area (W×L (mm)):
    Standard: 730×650 / 850 / 1050 / 1250 / 1450 / 1650 / 1850 / 2050 / 2250 / 2450
    CCD version: 660×650 / 850 / 1050 / 1250 / 1450 / 1650 / 1850 / 2050 / 2250 / 2450
  • Printing Speed (pcs/h): 0–4,500 (depending on machine configuration, print size and application requirements)
  • Max. Screen Frame Size (W×L (mm)): 1000×1000 / 1200 / 1400 / 1600 / 1800 / 2000 / 2200 / 2400 / 2600 / 2800
  • Max. Web Width (mm): 730
Roll-to-Roll Screen Press (830mm Web Width)
Roll-to-Roll Screen Press
  • Model: LTA-8060/8080 / 80100/80120/80140/80160/80180/80200/80220 /80240
  • Printing Area (W×L (mm)):
    Standard: 830×650 / 850 / 1050 / 1250 / 1450 / 1650 / 1850 / 2050 / 2250 / 2450
    CCD version: 760×650 / 850 / 1050 / 1250 / 1450 / 1650 / 1850 / 2050 / 2250 / 2450
  • Printing Speed (pcs/h): 0–4,500 (depending on machine configuration, print size and application requirements)
  • Max. Screen Frame Size (W×L (mm)): 1100×1000 / 1200 / 1400 / 1600 / 1800 / 2000 / 2200 / 2400 / 2600 / 2800
  • Max. Web Width (mm): 830
Features
  • With the integrated unwinding and rewinding system, its vacuum suction system works together with tension control technology to maintain stable operation, while protecting the printed surface from scratches.
  • Our screen-printing machines are equipped with adjustable printing pressure, anti-dripping pressure, and real-time parameter display systems. Printing conditions can be adjusted according to different thicknesses, surface characteristics, and ink requirements to achieve consistent printing results across rolls of materials.
  • It is equipped with an automatic off-contact function for applications requiring large-area color printing or adhesive printing. By controlling the separation between the screen and printing material, the system helps reduce issues such as screen sticking and ink accumulation. Optional anti-dripping functions are available to minimize ink marks and maintain color consistency.
  • Key adjustment positions are equipped with scale indicators or digital displays. The squeegee and flood bar can be adjusted independently according to different printing requirements, while the double-sided squeegee design extends service life and reduces replacement frequency. The frame adopts electrostatic powder coating technology with good resistance against solvents and daily industrial wear for long-term operation.
  • It has a modular structure with reserved interfaces for additional functions. Options such as automatic punching systems, UV curing units, and other customized modules can be integrated according to specific production requirements. This gives customers flexibility to expand machine capabilities in the future.
Components
  • Automatic feeder
    Automatic feeder
  • Automatic printing press
    Automatic printing press
  • Punching function
    Punching function
  • Automatic registration (optional)
    Automatic registration (optional)
  • Automatic CCD vision registration (optional)
    Automatic CCD vision registration (optional)
  • Vacuum pull roller (optional)
    Vacuum pull roller (optional)
  • Tunnel oven (optional)
    Tunnel oven (optional)
  • Web guiding system (optional)
    Web guiding system (optional)
  • Constant-speed control
    Constant-speed control
  • Anti-scratch handling system and static eliminator (both optional)
    Anti-scratch handling system and static eliminator (both optional)
  • Web-guiding and laminating units (optional)
    Web-guiding and laminating units (optional)
  • Automatic CCD vision registration (optional)
    Automatic CCD vision registration (optional)
  • Digital position adjustment unit (optional)
    Digital position adjustment unit (optional)
  • Servo lifting system (optional)
    Servo lifting system (optional)
  • UV/LED UV curing unit (optional)
    UV/LED UV curing unit (optional)
  • Film peeling unit (optional)
    Film peeling unit (optional)
  • Web cleaning unit (optional)
    Web cleaning unit (optional)
  • Inspection table (optional)
    Inspection table (optional)

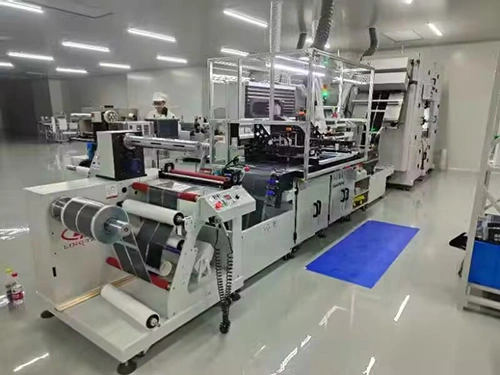

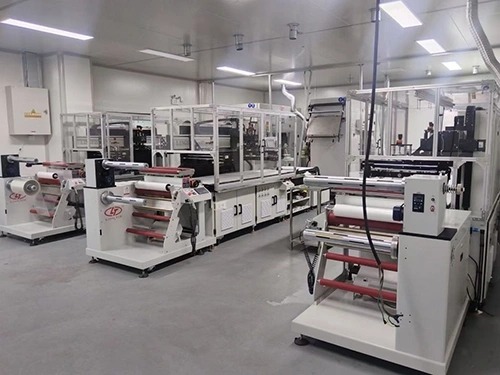

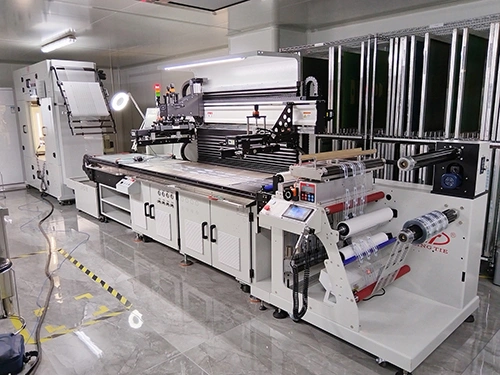

On-Site Applications
  • On-Site Applications
  • On-Site Applications
  • On-Site Applications
Backed by 20+ years of engineering expertise, LINGTIE is a direct manufacturer specializing in industrial printing equipment and label finishing equipment, delivering roll-to-roll screen printing lines, letterpress printing presses, and automatic heat transfer presses. Serving global clients across packaging, textiles and apparel, labels, nonwoven products, electronics, plastic products, and paper processing, we offer a complete range of auxiliary equipment such as slitter rewinder, inspection rewinder, roll-to-sheet cutter, and UV curing machine to seamlessly convert raw substrates into precision-printed products. Global procurement partners trust LINGTIE because we manage the complete production process in-house, from precision machining to final assembly, delivering turnkey printing solutions with reliable performance, high accuracy, and long-term production stability for customers worldwide.
