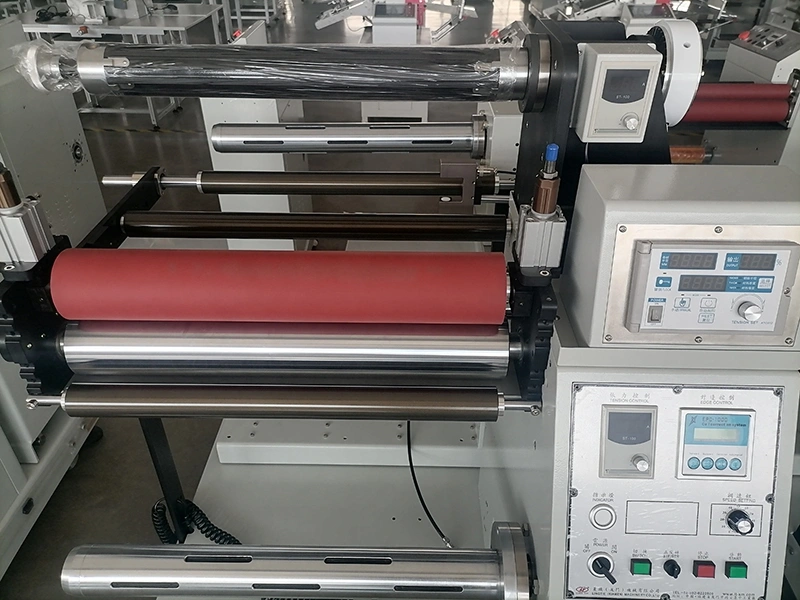

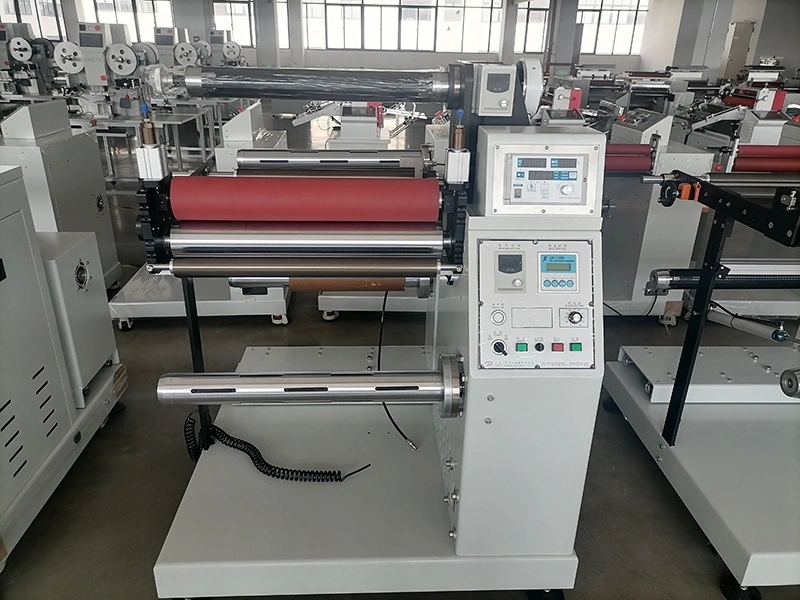

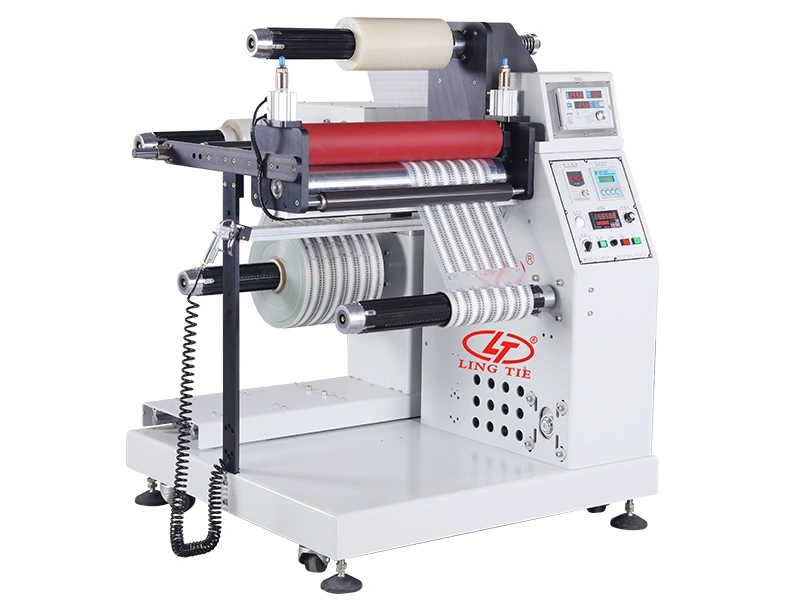

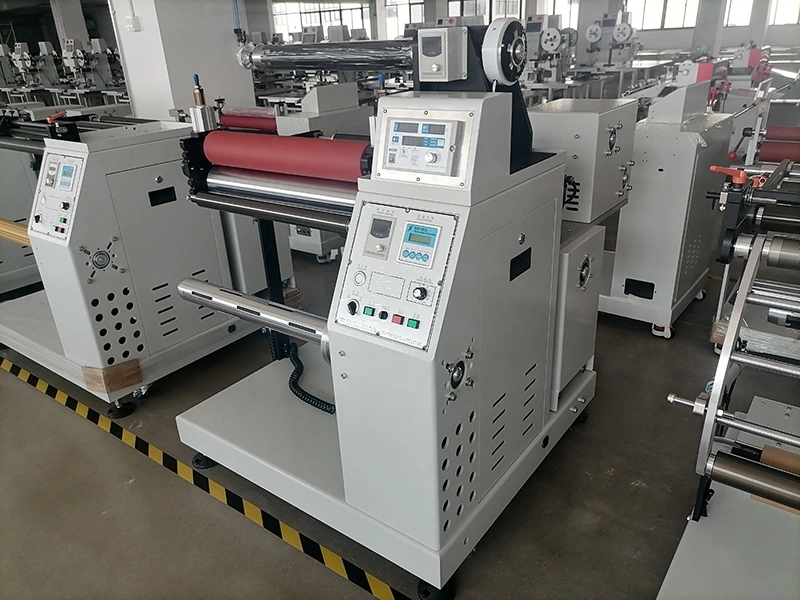

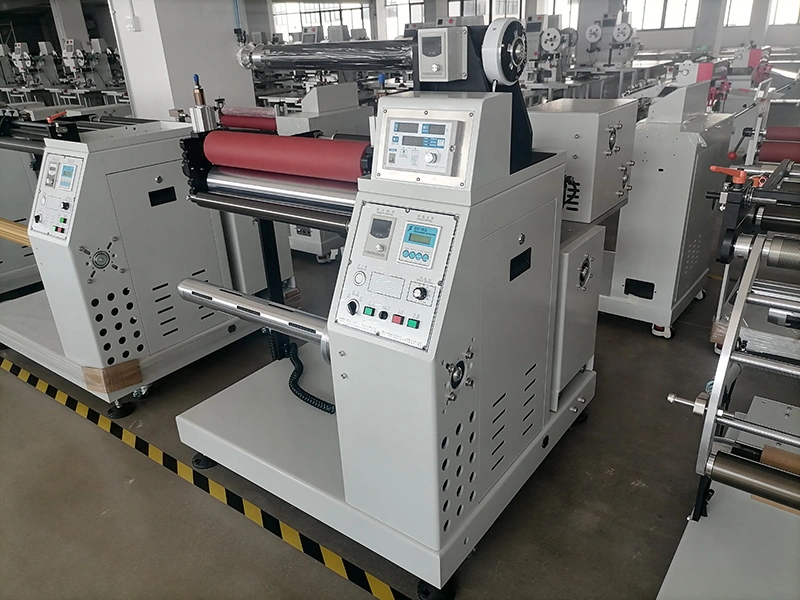

Web Laminating Machine
Web laminating machine bonds a transparent plastic film to paper, film, and other substrates through hot or cold lamination. The finished layer protects the printed surface and can also give the product a gloss, matte, or functional finish according to the film being used.
Technical Specifications
| Model | ||||||
| Max. Web Width | mm | 400 | 600 | 700 | 900 | 1000 |
| Max. Load | kg | 70(customizable) | 70(customizable) | 70(customizable) | 200(customizable) | 200(customizable) |
| Max. Roll Diameter | mm | 650 | 650 | 650 | 910 | 910 |
| Power Supply | V / kW | 220 / 0.75 | 220 / 1.7 | 220 / 1.7 | 220 / 1.7 | 220 / 1.7 |
| Electromagnetic Tension | N | 0–25 | 0–25 | 0–25 | 100 | 100 |
| Web Guide Stroke | mm | 140(±70) | 140(±70) | 140(±70) | 140(±70) | 140(±70) |
| Net Weight | kg | 290 | 330 | 360 | 600 | 630 |
| Machine Dimensions (L×W×H) | mm | 1000×950×1050 (+100adjustable) | 1000×1150×1050 (+100adjustable) | 1000×1250×1050 (+100adjustable) | 1310×1664×1140 (+100adjustable) | 1310×1764×1140 (+100adjustable) |
| Other sizes and models are available upon request. Weight varies depending on the final machine configuration. | ||||||
Advantages
- Efficient continuous production
Automatic feeding, lamination, and collection are handled in one process that reduces manual work and keeps batch production moving efficiently. - Works with different substrates and films

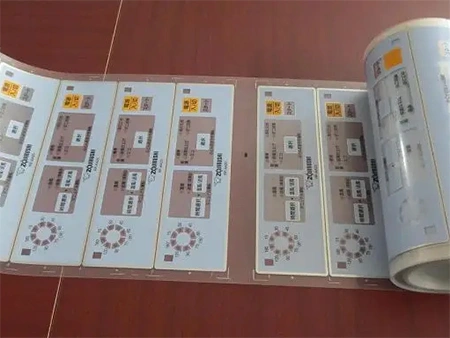

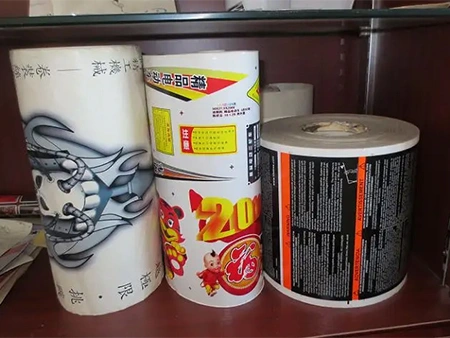

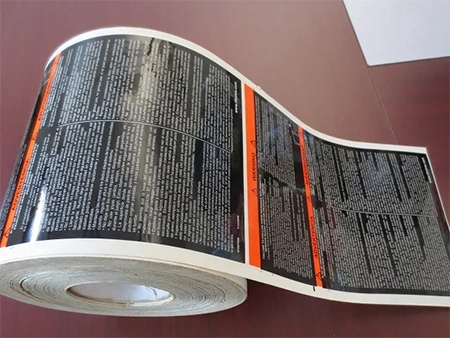

The laminating machine can process paper and film materials with gloss, matte, and functional laminating films. This gives manufacturers more flexibility across different products and finishing requirements.
